Oil Level Switch

Technical data: HBSO-SSR-2

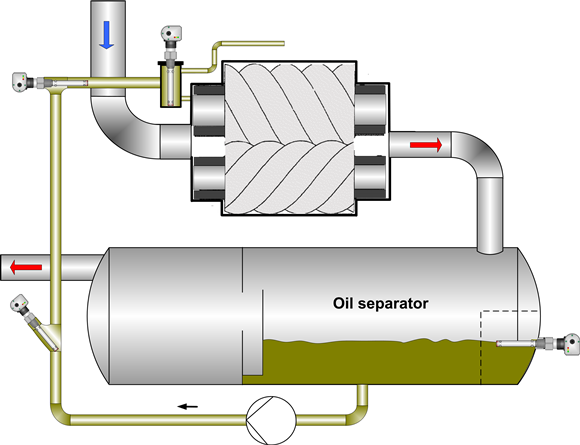

The HBSO1 (for PAO & mineral oil) and HBSO2 (for POE & PAG oil) are Level Switches designed to detect lubricating oils in refrigeration systems. Commonly installed on compressors and oil separators, they can also be used in other locations within the oil system. The unique measurement principle allows these sensors to detect oil without detecting refrigerant, providing high accuracy even in challenging conditions with oil spray and foam.

Shop image

Click to enlarge image 1445342662FIL_5100.jpg

Click to open image!

View the embedded image gallery online at:
https://hbproducts.dk/en/products/item/876-oil-switch-90-240-v-ac-refrigeration-compressor#sigProIdd952fb5270

Product features

  • CO2 system application: These robust switches are designed to withstand high pressure and temperature, making them suitable for transcritical CO2 refrigeration systems.
  • Liquid temperature range: Operate across a temperature range of 0°C to 80°C (32°F to 176°F).
  • Pressure tolerance: Rated for pressures up to 150 bar (2175 psi).
  • Power supply: They feature a universal power supply compatible with 90-240V AC, offering flexibility for various installation scenarios.
  • Split design: Simplifies installation and diagnostics; electronic parts can be removed with two screws.
  • LED indicators: Clear LED indication for easy status checking.

Applications

HBSO SSR

Specifications

Connection diagram

SSR-2 Connection Diagram

Drawing

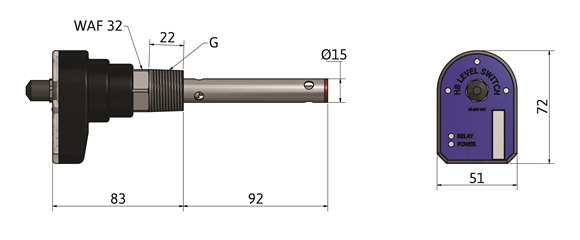

HBSO SSR maalsat 2
Thread type: 1/2" & 3/4" BSPP or NPT

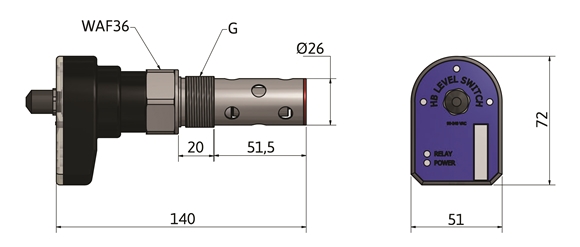

HBSO SSR maalsat 7
Thread type: 1 1/8" UNEF

Power supply
Voltage90...240 V AC
Max current consumption40 W
Plug connectionM12 - DIN 0627
Output
OutputSolid State Relay
Contact functionNC or NO
Environmental conditions
Ambient temperature-30...+50°C
Oil temperature0...80°C
Max pressure150 bar
Protection degreeIP54 *
VibrationsIEC 60068-2-6 (4g)
Mechanical specifications
Thread connection1/2", 3/4” & 1 1/8"
Material (liquid parts)AISI 304 / PTFE
Material (electronic parts)Nylon 6 (PA)
Approvals
EMC testEN 61000-2
Indication
LED indication4 x red
Accessories
Compressor adapterHBS/ADAP/FLANGE
*For outdoor and low temperature application use low temperature type

Ordering code

OutputThread typeOrdering code
NO1/2" NPTHBSO1-SSR-2/NO-1
NC1/2" NPTHBSO1-SSR-2/NC-1
NO3/4" NPTHBSO1-SSR-2/NO-2
NC3/4" NPTHBSO1-SSR-2/NC-2
NO1/2" BSPPHBSO1-SSR-2/NO-5
NC1/2" BSPPHBSO1-SSR-2/NC-5
NO3/4" BSPPHBSO1-SSR-2/NO-6
NC3/4" BSPPHBSO1-SSR-2/NC-6
NO1 1/8" UNEFHBSO1-SSR-2/NO-7
NC1 1/8" UNEFHBSO1-SSR-2/NC-7
NO1/2" NPTHBSO2-SSR-2/NO-1
NC1/2" NPTHBSO2-SSR-2/NC-1
NO3/4" NPTHBSO2-SSR-2/NO-2
NC3/4" NPTHBSO2-SSR-2/NC-2
NO1/2" BSPPHBSO2-SSR-2/NO-5
NC1/2" BSPPHBSO2-SSR-2/NC-5
NO3/4" BSPPHBSO2-SSR-2/NO-6
NC3/4" BSPPHBSO2-SSR-2/NC-6
NO1 1/8" UNEFHBSO2-SSR-2/NO-7
NC1 1/8" UNEFHBSO2-SSR-2/NC-7
Spare parts for HBSO-SSR-2
Electronic part for HBSO1-SSR-2/NO HBSO1-SSR-2/NO-EL
Electronic part for HBSO1-SSR-2/NC HBSO1-SSR-2/NC-EL
Electronic part for HBSO2-SSR-2/NO HBSO2-SSR-2/NO-EL
Electronic part for HBSO2-SSR-2/NC HBSO2-SSR-2/NC-EL

Downloads

Quick guide - HBSO-SSR-2

Instruction manual - HBSO-SSR-2

STEP file - HBSO-SSR-2 /-2

STEP file - HBSO-SSR-2/-7
