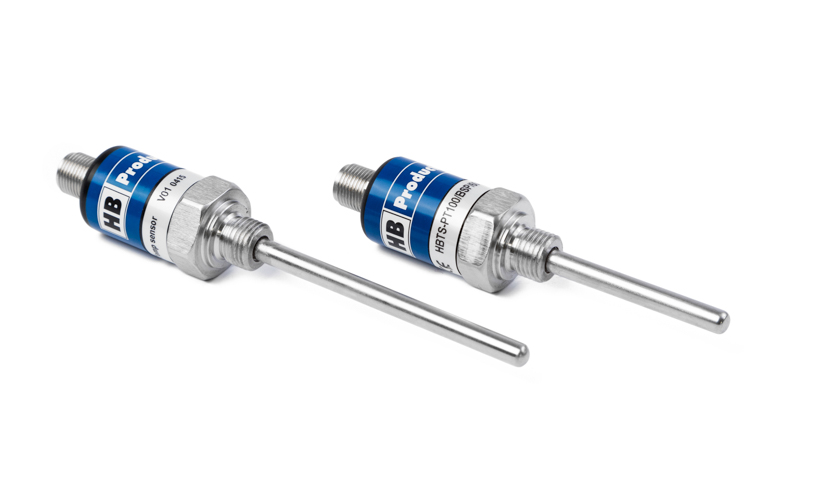

Technical data: HBTS
HBTS is a temperature sensor in accordance with DIN 60751, and it is available in two variants, PT100 and PT1000 – DIN B – class 3. The sensor is designed for industrial applications where servicing of the electronics can be carried out without emptying the system of refrigerant. The sensor is delivered with a 60 & 90 mm sensor element length and a 6 mm sensor diameter. Sensor well is included with the sensor.
Click to open image!
 |
4-wire PT100 orr PT1000 sensor element DIN B class 1/3 - DIN 60751 |
|
Max pressure 150 bar. |
|
Temperature area: -50..+130°C |
|

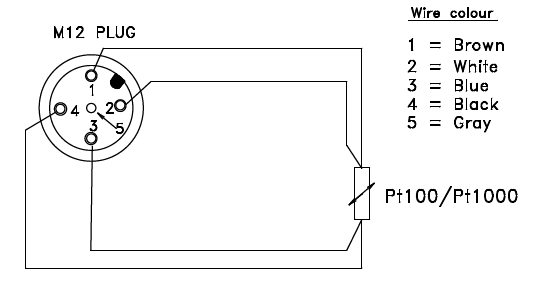

M12 plug connection - DIN 0627 |

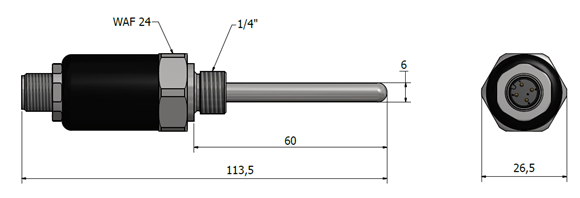

HBTS-xxx/xx-60

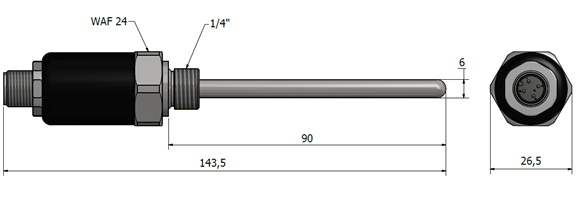

HBTS-xxx/xx-90
| Technical Data | |
|---|---|
| Plug | M12-DIN 0627 |
| Sensor element | PT100 / PT1000 |
| Sensor class | DIN B - kl. 1/3 |
| Sensor design | 4 wire |
| Dynamic response T05/T09 | according to EN 60751 |
| Including sensor well | 10/26 s |
| Without sensor well | 2/6 s |
| Environmental conditions | |
| Ambient temperature | -30...+85°C |
| Refrigerant temperature | -50...+130°C* |
| Max pressure | 150 bar |
| Protection degree | IP65 |
| Vibrations | IEC 60068-2-6 (4g) |
| Mechanical specifications | |
| Thread connection | 1/4” NPT or BSPP |
| Material - liquid parts | AISI 304 |
| Material - electrical parts | Plast |
| Sensor element | Ø6 - 60 / 90 mm |
| Approvals | |
| EMC test | EN 61000-2 |
| Sensor type | Sensor length | Thread type | Ordering code |
|---|---|---|---|
| PT100 | 60 mm | 1/4" NPT | HBTS-PT100/NPT/60 |
| PT100 | 90 mm | 1/4" NPT | HBTS-PT100/NPT/90 |
| PT100 | 60 mm | 1/4" BSPP | HBTS-PT100/BSP/60 |
| PT100 | 90 mm | 1/4" BSPP | HBTS-PT100/BSP/90 |
| PT1000 | 60 mm | 1/4" NPT | HBTS-PT1000/NPT/60 |
| PT1000 | 90 mm | 1/4" NPT | HBTS-PT1000/NPT/90 |
| PT1000 | 60 mm | 1/4" BSPP | HBTS-PT1000/BSP/60 |
| PT1000 | 90 mm | 1/4" BSPP | HBTS-PT1000/BSP/90 |
