Controller - Liquid Level

Technical data: HBLT-C1

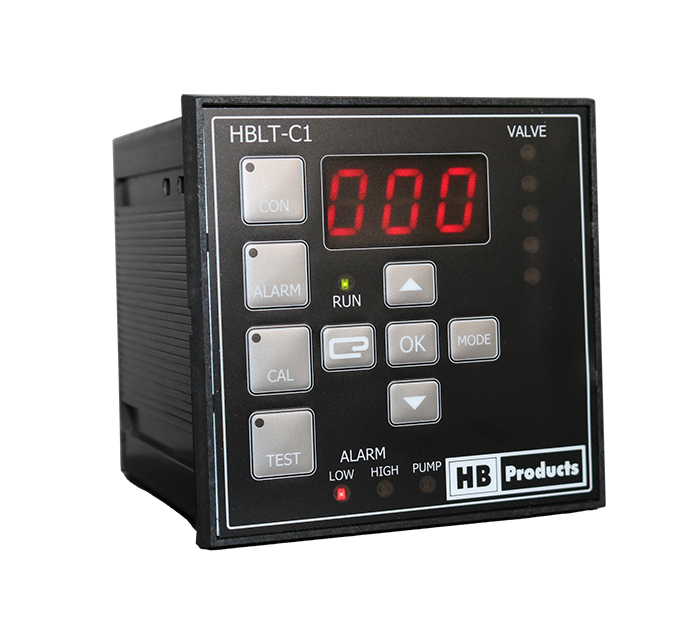

The HBLT-C1 is a programmable controller designed for level control in industrial refrigeration systems. It is compatible with a range of analog level sensors, such as the HBLT-A1 and HBLC-CO2, or other sensors that output a 4-20 mA signal. This flexibility allows it to integrate seamlessly into various industrial refrigeration applications.

Key features

  • Power supply: The controller operates on a 24 V DC power supply.
  • LED indicators: Provides clear visual indicators for power supply and alarm status.


Product features

Programmable controller for front panel mounting
Displaying tank level - 0...100 %, alarms for low level, high level and pump status
3 x SPST relay output and 1 x solid state relay
24 V AC/DC power supply

Applications

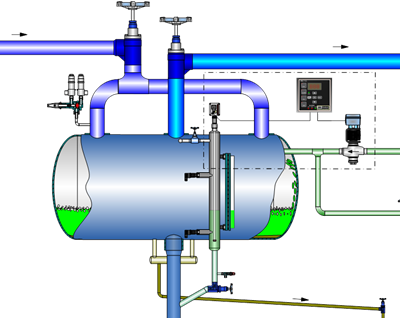

 Controller HBLT-C1 built in to maintain and control refrigerant level in a pump separator.



HBLT C1 pump control



Specifications

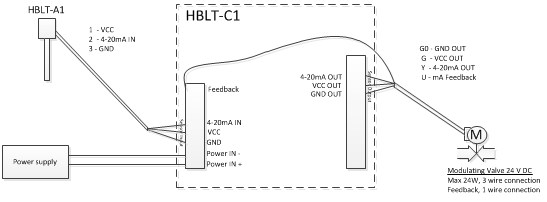

Connection diagram

HBLT-C1 eldiagram

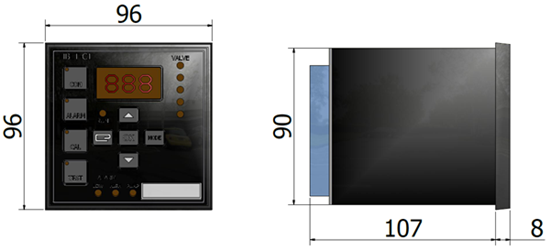

Drawing

HBLT C1

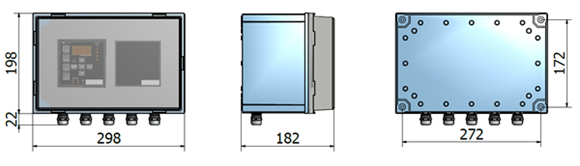

HBLT C1 ENC

Power supply
Power supply24 DC + 10%
Current consumptionMax 600 mA
Electronic connectionsScrew terminals
Wiring size2,5 mm2
Input
Analouge input - sensor4-20 mA
Analouge input - feedback4-20 mA
Relay functionAlarm - max level
Relay voltage5-25 VDC
Output
Analouge output4-20 mA
Load3A/24VDC
Relay ouput@24VAC & DC: 3 x 3A @110 VAC. 3 x 5A @240 VAC: 3 x 5A
Environmental conditions
Ambient temperature-20...+70 °C
Protection degree - front mountedIP45
Humidity20...80 %
Mechanical specifications
InstallationFront of panel
Measure96x96x115 mm
Cutting dimension in panel92,8x92,8 mm
MaterialePlastic
Approvals
EMCEN61000
Display
DisplayRed LED, 3 digits
AlarmGreen and red LED
ProgrammingFrom front
Update frequency1 time/sec
Valve position5 x LED

Ordering code

House designOrdering code
Controller - 24 V DC power supplyHBLT-C1
Controller build in a cabinet and mounted with 110/240 V power supplyHBLT-C1-ENC
