Technical data: HBSC2

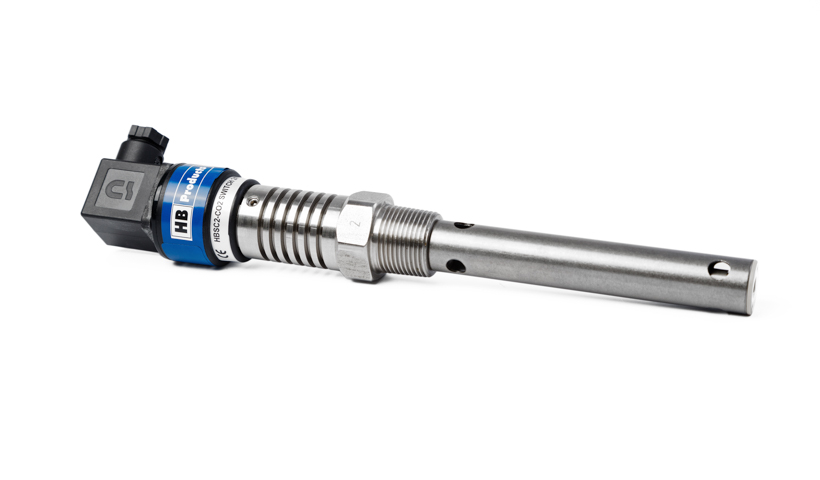

The HBSC2 is a Level Switch designed for detecting liquid CO2 in refrigeration systems. It can also be used to detect butane, isobutane, and propane. The sensor is typically installed in or on the receiver but can be placed in other locations where level indication is required. Its unique measurement principle and robust construction allow it to endure high pressure and low refrigerant temperatures, making it suitable for transcritical CO2 refrigeration systems.
Click to open image!
Liquid refrigerant level detection with HBSC2 in a tank.
| Power supply | |
|---|---|
| Voltage | 24 V AC/DC + 10% |
| Current consumption | < 200 mA |
| Max current output | Max 50 mA |
| Plug connection | ISO4400/DIN 43650 - 4 pins |
| Output | |
| Transistor output | PNP or NPN |
| Contact function | NC or NO |
| Environmental conditions | |
| Refrigerant temperature | -55...+30°C |
| Ambient temperature | -30...+50°C |
| Max pressure | 150 bar |
| Protection degree | IP54 * |
| Vibrations | IEC 60068-2-6 (4g) |
| Mechanical specifications | |
| Thread connection | 3/4" |
| Material - liquid parts | AISI 304 / PTFE |
| Materiale - electronic parts | Nylon 6 (PA) |
| Approvals | |
| EMC test | EN 61000-2 |
| *For outdoor and low temperature application use low temperature type with built-in heater | |
| Output | Thread type | Ordering code |
|---|---|---|
| PNP / NO | 3/4" NPT | HBSC2-PNP/NO-2 |
| PNP / NC | 3/4" NPT | HBSC2-PNP/NC-2 |
| PNP / NO | 3/4" BSPP | HBSC2-PNP/NO-6 |
| PNP / NC | 3/4" BSPP | HBSC2-PNP/NC-6 |
| NPN / NO | 3/4" NPT | HBSC2-NPN/NO-2 |
| NPN / NC | 3/4" NPT | HBSC2-NPN/NC-2 |
| NPN / NO | 3/4" BSPP | HBSC2-NPN/NO-6 |
| NPN / NC | 3/4" BSPP | HBSC2-NPN/NC-6 |
| Spare parts for HBSC2 | ||
| Electronic part for HBSC2-PNP/NO | HBSC2-EL/PNP/NO | |
| Electronic part for HBSC2-PNP/NC | HBSC2-EL/PNP/NC | |
| Electronic part for HBSC2-NPN/NO | HBSC2-EL/NPN/NO | |
| Electronic part for HBSC2-NPN/NC | HBSC2-EL/NPN/NC |
