Technical data: HBOC/C
The HBOC/C sensor is designed to detect oil levels in gas, similar to the HBSO but with enhanced functionality. It features a built-in controller that maintains desired oil levels by controlling valves for filling or emptying a vessel.

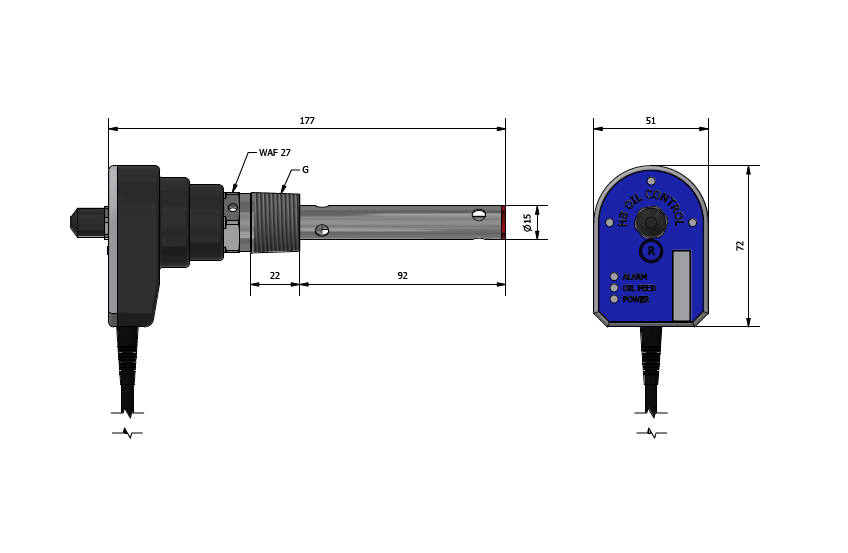

Click to open image!
| Power supply | |
|---|---|
| Voltage | 24 V DC +/- 10% |
| Current consumption | Max 600 mA |
| Plug connection | M12, 5 pins |
| Direct valve control - cable | |
| Solenoid valve | 24 V DC - max 24 W |
| Cable length | 3 m (118”) |
| Cable dimensions | 2 x 0,75 mm2 |
| M12 output | |
| Alarm output | Solid State |
| Contact function | NC/NO |
| Potential free output | Max 1 A (24W) |
| Environmental conditions | |
| Ambient temperature | -30...50°C |
| Oil temperature | 0... 80°C |
| Max pressure | 150 bar |
| Protection degree | IP54 |
| Vibrations | IEC 60068-2-6 (4g) |
| Mechanical specifications | |
| Thread connection | 1/2", 3/4” & 1 1/8" |
| Material - liquid parts | AISI 304 / PTFE |
| Material - electronic parts | Nylon 6 (PA) |
| Approvals | |
| EMC test | EN 61000-2 |
| Indication | |
| Power, oilfeed and alarm | LED (green, yellow & red) |
| LED indication of switch point | Green |
| Configuration | |
| Configuration | With PC tool |
| Accessories | |
| USB programming cable | HBxC-USB |
| House design | Thread type | Ordering code |
|---|---|---|
| Angled | 1/2" NPT | HBOC/C-1 |
| Angled | 3/4" NPT | HBOC/C-2 |
| Angled | 3/4" BSPP | HBOC/C-6 |
| Angled | 1 1/8" UNEF | HBOC/C-7 |
| Electronic part for HBOC/C | HBOC/C-EL |
