Technical data: HBDF-OD

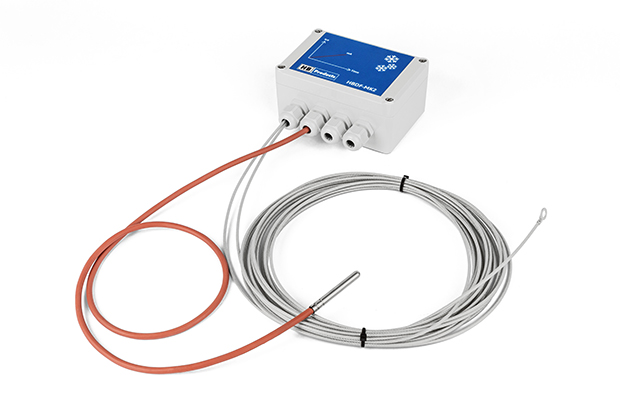

The HBDF-OD is a sensor designed for outdoor evaporators, with temperature guidance capabilities in the range of -60°C to 20°C (-76°F to 68°F). However, it may be affected by rain, snow, or other forms of moisture on the evaporator surface. Given these environmental influences, the sensor serves best as an assistant or guide for a controller rather than as a sole defrosting solution.
Click to open image!
| Power supply | |
|---|---|
| Voltage | 24 AC/DC |
| Current consuption - sensor only* | 600 mA |
| Electrical connection | Screw terminals |
| Sensor design | 3-wire |
| Analog output | 4-20 mA |
| Max. load | 500 ohm |
| Relay output | 2x5A, NO/NC |
| Relay output 24V | 2 x 3A, NO/NC |
| Cable entry | PG9 / M12 |
| Environmental conditions | |
| Ambient temperature | -30...+50°C |
| Protection degree | IP64 |
| Vibrations | IEC 68-2-6 (4g) |
| Mechanical specifications | |
| Material - mechanical parts | AISI 304 |
| Material - electronic parts | Nylon 6 (PA) |
| Approvals | |
| Certifications - EMC Emission | EN 61000-3-2 |
| Certifications - EMC Immunity | EN 61000-4-2 |
| Configurations | |
| Type of configuration | HB Tool |
| Tool to be used | HB software |
| Accessories | |
| USB Programming cable | HBxC-USB |
| * Total consumption is sensor consumption plus output and it depends on ambient temperature. | |
| Description | Wire length | Ordering code |
|---|---|---|
| Defrost sensor for heat pump applications | 10 m | HBDF-MK2-10-OD |
| Defrost sensor for heat pump applications | 20 m | HBDF-MK2-20-OD |
| Defrost sensor for heat pump applications | 30 m | HBDF-MK2-30-OD |
| Electronic Part for HBDF-MK2 | Spare part must be calibrated | HBDF-MK2-EL |
| USB programming cable | Accessories | HBxC-USB |
