Technical data: HBDF-freezer
The HBDF-freezer is a sensor designed for evaporators with a minimum fin spacing of 5 mm, operating in cold rooms with temperatures ranging from -30°C to 0°C (-22°F to 32°F). It is intended exclusively for dry indoor environments.

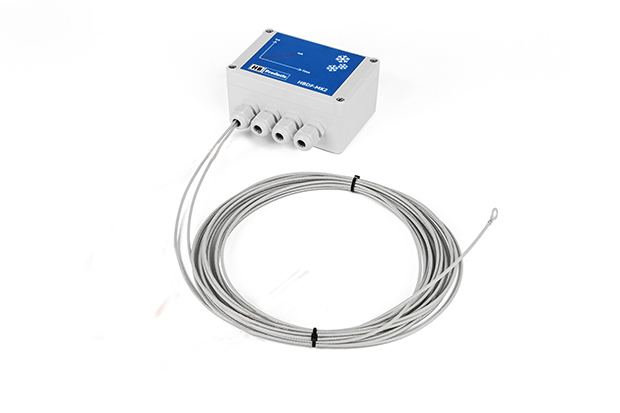

Click to open image!
| Power supply | |
|---|---|
| Voltage | 24 AC/DC |
| Current consuption - sensor only* | 600 mA |
| Electrical connection | Screw terminals |
| Sensor design | 3-wire |
| Analog output | 4-20 mA |
| Max. load | 500 ohm |
| Relay output | 2x5A, NO/NC |
| Relay output 24V | 2 x 3A, NO/NC |
| Cable entry | PG9 / M12 |
| Environmental conditions | |
| Ambient temperature | -30...+50°C |
| Protection degree | IP64 |
| Vibrations | IEC 68-2-6 (4g) |
| Mechanical specifications | |
| Material - mechanical parts | AISI 304 |
| Material - electronic parts | Nylon 6 (PA) |
| Approvals | |
| Certifications - EMC Emission | EN 61000-3-2 |
| Certifications - EMC Immunity | EN 61000-4-2 |
| Configurations | |
| Type of configuration | HB Tool |
| Tool to be used | HB software |
| Accessories | |
| USB Programming cable | HBxC-USB |
| * Total consumption is sensor consumption plus output and it depends on ambient temperature. | |
| Description | Wire length | Ordering code |
|---|---|---|
| Defrost sensor MK2 for freezer | 10 m | HBDF-MK2-10-Freezer |
| Defrost sensor MK2 for freezer | 20 m | HBDF-MK2-20-Freezer |
| Defrost sensor MK2 for freezer | 30 m | HBDF-MK2-30-Freezer |
| Electronic Part for HBDF-MK2 | Spare part must be calibrated | HBDF-MK2-EL |
| USB programming cable | Accessories | HBxC-USB |
