Product series: HBTS-TR

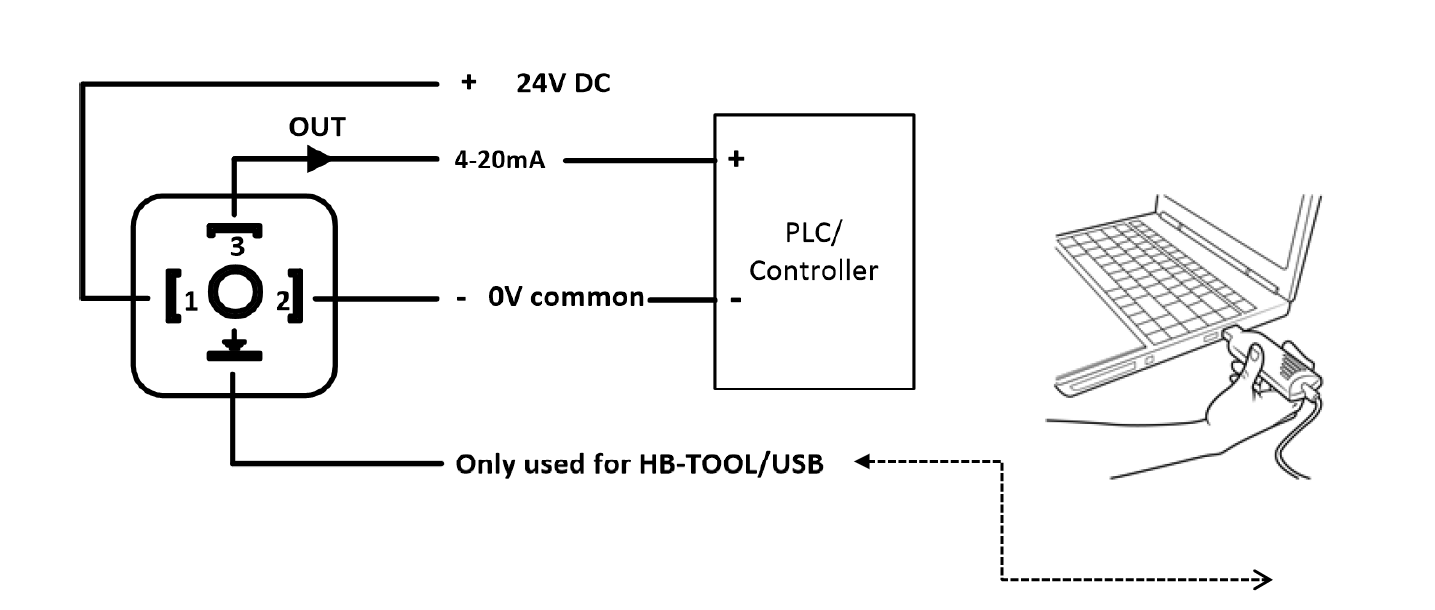

HBTS-TR is a temperature sensor conforming to DIN 60751, with 4-20mA transmitter signal, the measuring range can be scaled with the HB-TOOL. The sensor can be configured with the HBxC-USB programming cable and the adaptor HBxC-Adapt-DIN/M12 which can be purchased as accessories.

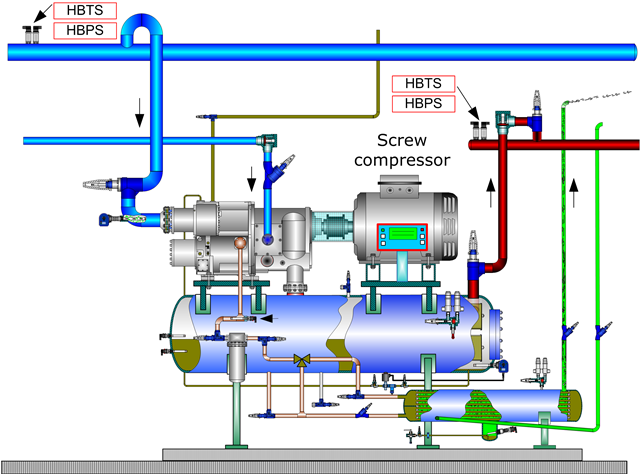

The sensor is designed for easy servicing of the electronics, as it can be carried out without emptying the proces plant for liquid.

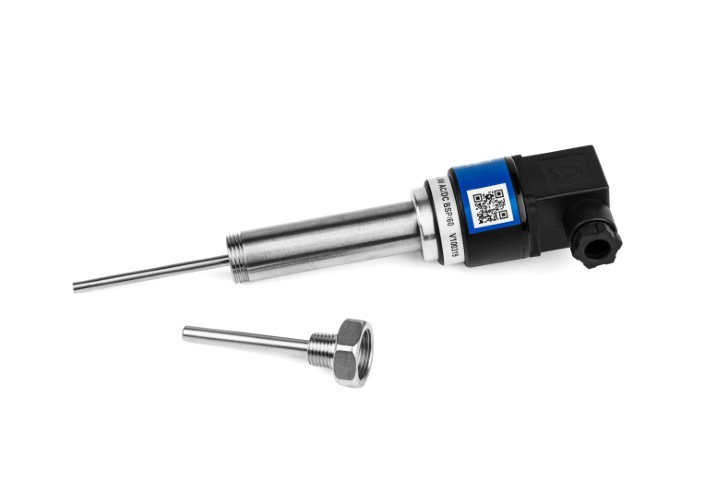

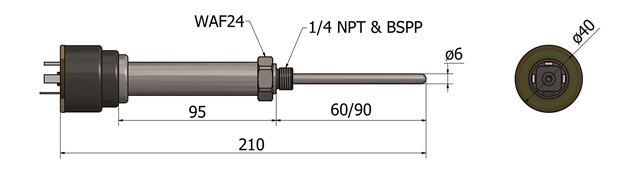

The sensor is delivered with a 60 & 90 mm sensor element length and a 6 mm sensor diameter. Sensor well and DIN 43650 plug is included with the sensor.
