Technical data: HBTS/Cable
The Cable Temperature Sensors are used as signal sensors for electronic thermostats, regulators and thermometers.

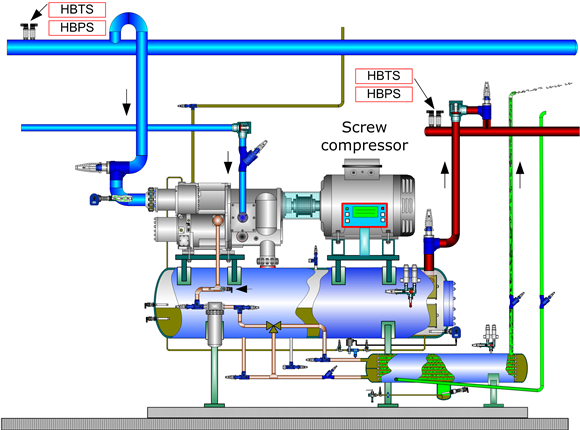

The sensors can be used virtually anywhere where you want to measure or monitor temperature. The sensor can be mounted in a sensor well or directly.
The HBTS-PT1000/cable is also included as a spare part for the HBDF-MK2 sensor.
Click to open image!
 |
Available in two types as 4-wire (4 X 0,24mm²) (PT 100) or 2-wire (2 X 0,5 mm²) (PT1000) |
|
To be mounted in sensor well or directly |
|
Temperature range: -40...+130°C (peak 150°C) |
| Electrical connection | |
|---|---|
| Cable length | 2,0 m / 5,0 m / 10,0 m |
| Sensor element | PT100 / PT1000 |
| Sensor class | DIN B |
| Sensor design | 4-wire (4 X 0,24mm²) (PT 100) |
| Sensor design | 2-wire (2 X 0,5 mm²) (PT1000) |
| Environmental conditions | |
| Temperature range | -40°C...+130°C (peak 150°C) |
| Protection degree | IP68 |
| Mechanical specifications | |
| Material - probe tip | AISI 316 |
| Material - cable | Red/orange silicone |
| Sensor element | Ø 6 X 50 mm |
| Approvals | |
| RoHS COMPLIANT | RoHS COMPLIANT 2002/95/EC |
| Sensor type | Sensor length | Dimensions | Ordering code |
|---|---|---|---|
| PT100 | 2 m | Ø6X50 mm | HBTS-PT100/Cable-2M |
| PT100 | 5 m | Ø6X50 mm | HBTS-PT100/Cable-5M |
| PT100 | 10 m | Ø6X50 mm | HBTS-PT100/Cable-10M |
| PT1000 | 2 m | Ø6X50 mm | HBTS-PT1000/Cable-2M |
