Low-charge ammonia is not the challenge. Control is.
Written by: Michael Elstrøm
How to reduce charge and improve efficiency at the same time
Ammonia systems are already efficient. That is not the problem. The challenge is charge — and everything that follows: regulation, safety and system complexity. Most systems are not limited by thermodynamics. They are limited by how they are designed and controlled.
Control the liquid — or waste energy
When systems operate at part load — which they do most of the time — circulation rates increase while cooling demand drops. This forces compressors to work harder to maintain suction pressure.
The lowest energy consumption is achieved when circulation is minimized. But reduce it too much, and distribution fails. This is where most systems fail: they are designed for safety margins, not performance.
The solution is not guesswork, it is measurement. A vapor quality sensor measures how much liquid is actually leaving the evaporator — and allows you to control the system based on reality, not assumptions.
You can cut charge by more than 70%
In Europe, many systems operate around 5 kg NH₃/kW.
With controlled circulation, this can be reduced to below 1.5 kg NH₃/kW — without sacrificing performance.
Why? Because you no longer need to fill suction lines and separators with excess refrigerant.
What happens when you control circulation
- Lower circulation rate
- Lower compressor load
- Higher suction pressure
- Reduced ammonia charge
- Stable operation at part load
Evaporators do not forgive poor design
At low circulation rates, evaporator design becomes critical. You are no longer flooding the system, this means distribution must be precise.
If liquid is not evenly distributed:
- Capacity drops
- Efficiency drops
- Stability drops
This is not a component issue. It is a system design issue.
Refrigerant quality is not optional
Water and oil in ammonia reduce performance. In pumped systems, it leads to higher energy consumption, and in DX systems, it creates control issues and instability.
If ammonia is not clean, you are not running an efficient system. It is that simple.
Impact of poor refrigerant quality
- Lower heat transfer
- Higher energy consumption
- Unstable operation
- Reduced system capacity
DX systems take it further
DX systems remove liquid from the suction line. That is why they can operate with even lower charges.
Typical values:
- Pumped systems: ~5 kg NH₃/kW
- Optimized pumped systems: <1.5 kg NH₃/kW
- DX systems: <1 kg NH₃/kW
- Advanced DX (no hot gas defrost): down to 0.04 kg NH₃/kW

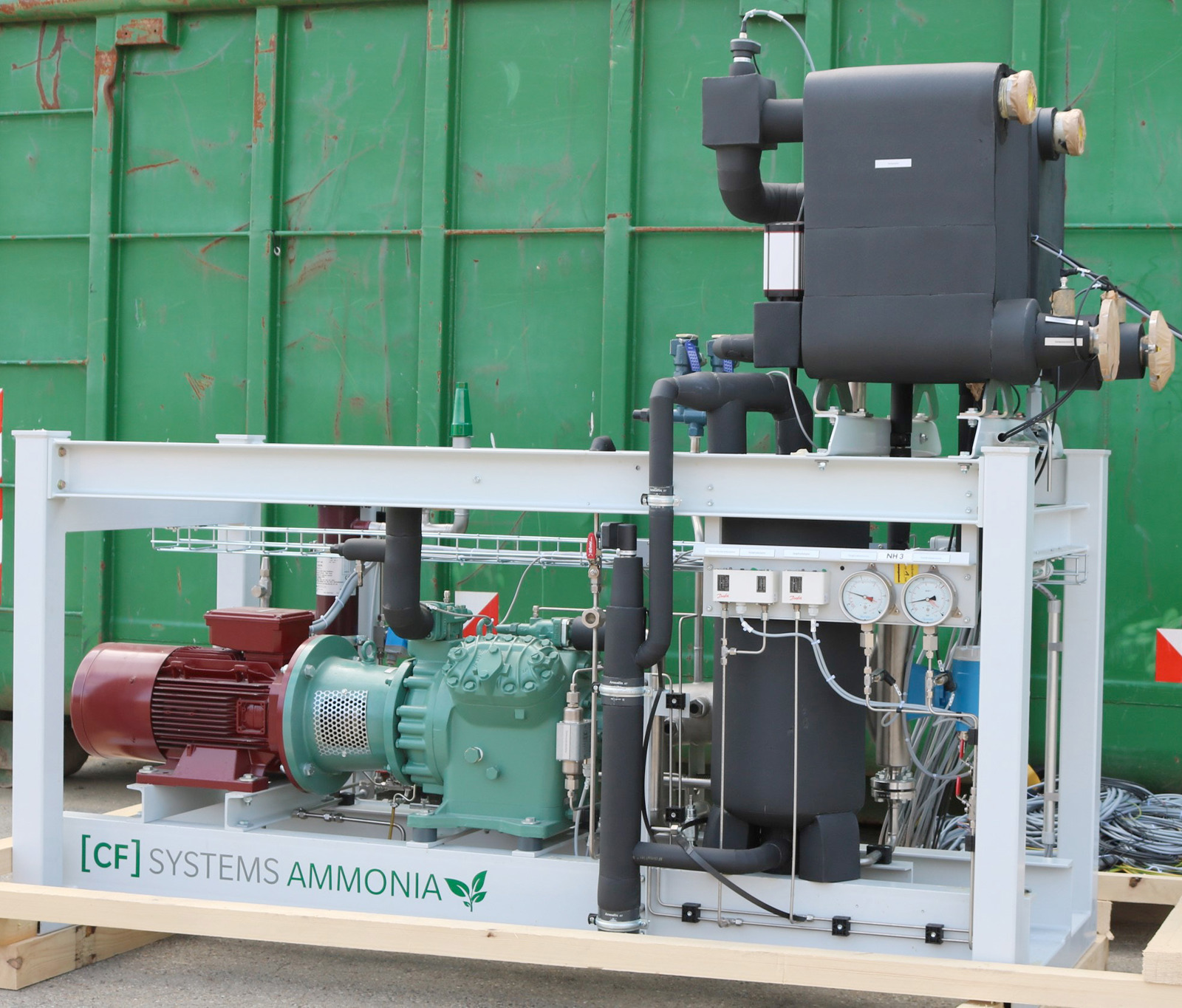

A 100 kW chiller can operate with just 4 kg of ammonia.
But DX only works if you control it properly
Traditional DX systems use superheat control. That is simple — and inefficient. You are deliberately drying out the evaporator to protect the compressor, but this is sacrificing heat transfer.
Vapor quality control changes this. It ensures dry gas — without sacrificing performance.
Why vapor quality control matters
- Protects compressor
- Maintains optimal evaporation
- Reduces energy consumption
- Handles water contamination
- Enables low-charge design
Distribution is the real challenge in DX
In pumped systems, you distribute liquid. In DX systems, you distribute a mixture of liquid and gas, that is fundamentally harder.
Without proper distribution:
- Gas bypasses parts of the evaporator
- Cooling capacity drops
- Efficiency drops
This is why DX systems require better components — not more components.
This is not new — but it is underused
The technology exists. Low-charge ammonia systems can be both safer and more efficient.
The limitation is not in the technology, it is whether you are willing to move away from traditional design principles.
